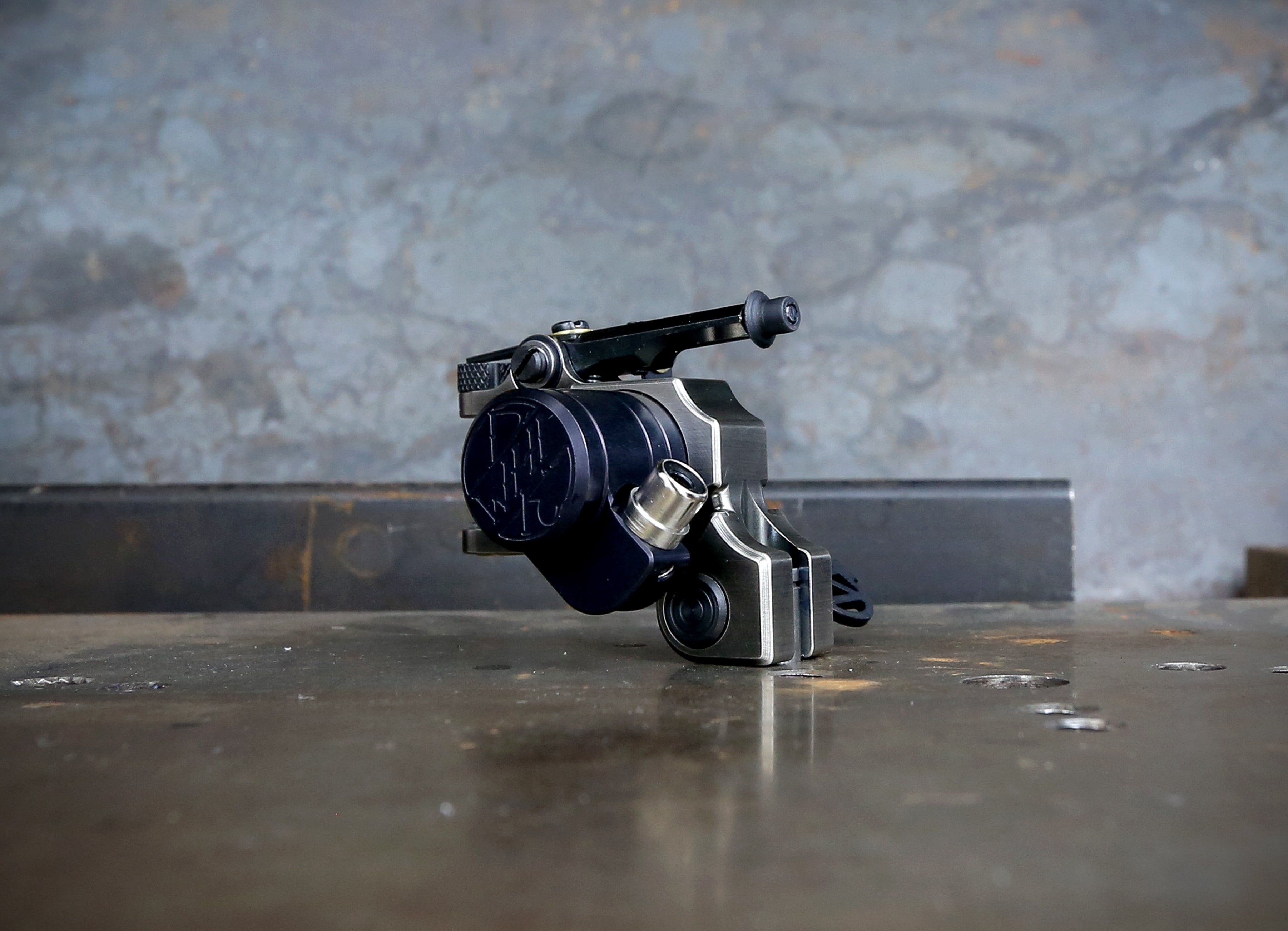

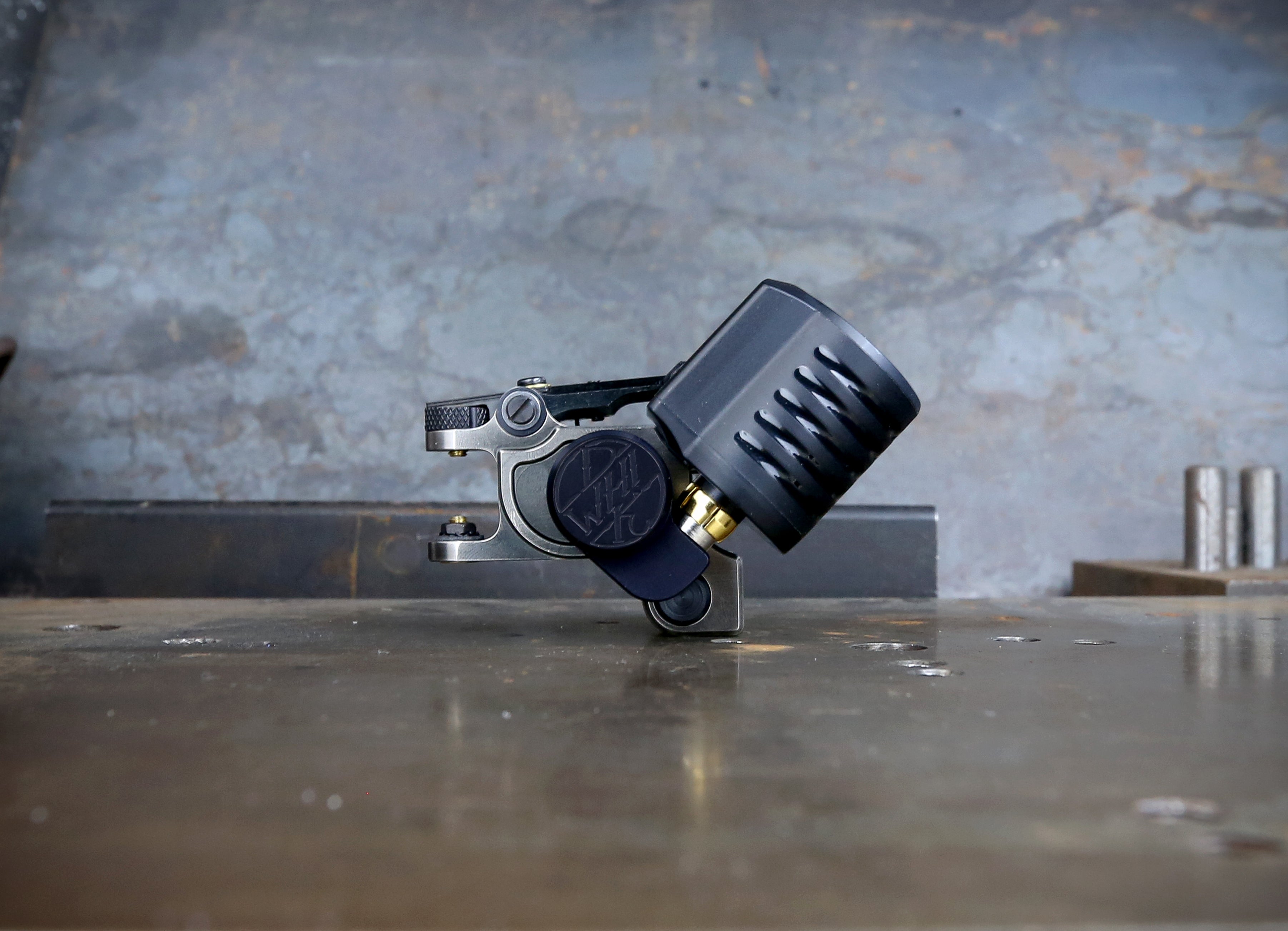

NEW Dan Kubin V3/23 Sidewinder with RCA!
"The V3/23 follows the same concept as the past V3r, but with a focus on what makes a Sidewinder a Sidewinder.? Hard hitting, effortless, and zippy.? -Intended for experienced artists who don’t want to mess around.
The 23 model is more reminiscent of the original V3r from 2019, but with some enhancements in the tuning longevity.?
We stripped it down a little more, and added in the extra performance.
The stroke wheel has been simplified with having 3 timing marks instead of numbers. The marks are of different lengths, with the longest mark signifying the longer stroke range, a middle mark that is the default setting, and a short mark to signify the shorter stroke range.
The sound of the machine has been enhanced in comparison to the 2nd and 3rd variation V3r. Plus the machine now sits a little lower, providing more ergonomics."
Thanks for looking - Dan.
RCA Specifications:
- RCA version is wired for the harder hit mode only using RCA connection. If using a clip cord on this version, they are wired opposite of the standard clip cord version, use Positive side DOWN for hard hit, Positive up for a more muted hit.
- This RCA motor housing was designed around a Critical Universal battery pack, but fits with most battery packs I have tried, such as Musotoku, Ink Claw, and Papa.
- This will also work good with a right-angle RCA cord.
- Clip Cord option still works, it is just wired backwards.
- The position of the battery makes the machine’s balance point much more forward, like a pen.
V3/23 Machine Specs:
Machine Setup:
- Standard Needle on Bar: wrap a thick rubber band around the motor cap and across the front of the machine to add needle bar tension. It is recommended that you use Thick Rubber Bands and Dan's Perfect Nipples.
- Cartridges: wrap a rubber band around the motor cap and over the top of the armature bar to counteract the cartridge's upward tension. Thick or standard rubber bands both work, it will just depend on the tension of the cartridge membrane or band to determine with rubber band provides the proper counter resistance.
V3R and V3/23 Sidewinders are engineered, designed, and tested by Dan, milled in his most trusted machine shop in Kansas City, then built by DK certified trained technicians at the Workhorse facility in Michigan. All other models are built by Dan and his team in Kansas City. V3/23s go through rigorous QC checks and are all ran through our testing machine to lightly break in. One year warranty on all models. V3R and V3/23 are serviced by Workhorse, all others are serviced by Dan or one of his certified technicians found on his website
**Do not connect power to the RCA plug and Clip Cord connection at the same time, it may cause damage to your power supply, battery, and or machine.?
